Python API
Introduction
Developers use this SDK inside Scriptlet Blocks to interact with the OOCANA workflow engine. This document covers the most important APIs and how to use them.
tip
If your block needs to call Fusion-hosted services, use oomol-fusion-sdk with token=await context.oomol_token() and base_url=context.fusion_api_url.
See Fusion SDK Overview and Fusion SDK for Python.
Quick Start
To use the SDK in a Scriptlet Block, import the Context object and call the related APIs through it.
Scriptlet Template
Below is the standard Scriptlet template. Write your execution logic inside the function body. The input and output types can be customized, and third-party libraries are supported. To pass data to downstream blocks, return a dictionary as you would in a normal function. OOCANA uses the top-level keys as output handles, and the corresponding values as the outputs for those handles.
from oocana import Context
def main(params: dict, context: Context):
# Write your execution logic here
# For example, return an `output` value of None.
return { "output": None }
Common APIs
def finish(self, *, result: Dict[str, Any] | None = None, error: str | None = None):
"""
Finish the current block and send the result to oocana.
If `error` is not None, the block finishes in an error state.
If `result` is not None, the block finishes with that result.
If both `error` and `result` are None, the block finishes normally with no result.
"""
def output(self, key: str, value: Any):
"""
Output data to downstream blocks.
key: str, the output key. It must be declared in the block output definition (`handle` field)
value: Any, the output value
"""
def outputs(self, outputs: Dict[str, Any]):
"""
Output multiple values to downstream blocks.
outputs: Dict[str, Any], output key/value pairs. Keys must be declared in the block output definition (`handle` field)
"""
# Enable data preview
def preview(self, payload: PreviewPayload):
# Get the temporary session directory, which can be used to store temporary files
def session_dir(self) -> str:
# Report progress (0-100). A throttle is built in and triggers every 300 ms.
def report_progress(self, progress: float | int):
# Read the current OOMOL token for calling OOMOL-owned services such as Fusion
async def oomol_token(self) -> str:
# Runtime Fusion API base URL
fusion_api_url: str
Context.preview Types
context.preview is a core API for previewing different kinds of data. It supports previews for almost all common data formats.
PreviewPayload Types
Function signature: context.preview
def preview(self, payload: PreviewPayload):
# Python only
payload = self.__dataframe(payload)
# Python only
payload = self.__matplotlib(payload)
self.__mainframe.report(
self.block_info,
{
"type": "BlockPreview",
"payload": payload,
},
)
Parameter type: PreviewPayload
PreviewPayload: TypeAlias = Union[
TablePreviewPayload,
TextPreviewPayload,
JSONPreviewPayload,
ImagePreviewPayload,
MediaPreviewPayload,
DataFrame,
PandasPreviewPayload,
DefaultPreviewPayload
]
class TablePreviewData(TypedDict):
columns: List[str | int | float]
rows: List[List[str | int | float | bool]]
row_count: int | None
class TablePreviewPayload(TypedDict):
type: Literal['table']
data: TablePreviewData | Any
class TextPreviewPayload(TypedDict):
type: Literal["text"]
data: Any
class JSONPreviewPayload(TypedDict):
type: Literal["json"]
data: Any
class ImagePreviewPayload(TypedDict):
type: Literal['image']
data: str | List[str]
class MediaPreviewPayload(TypedDict):
type: Literal["image", 'video', 'audio', 'markdown', "iframe", "html"]
data: str
class PandasPreviewPayload(TypedDict):
type: Literal['table']
data: DataFrame
class DefaultPreviewPayload:
type: str
data: Any
Preview Examples
context.preview({
# Supported types: "image" | "video" | "audio" | "markdown" | "iframe" | "html" | "json" | "text" | `text/${string}` | "table"
"type": "video",
# Data can be: file path, base64, or a pandas DataFrame
"data": "https://www.w3schools.com/html/mov_bbb.mp4"
})
tip
The following capabilities are only supported in Python

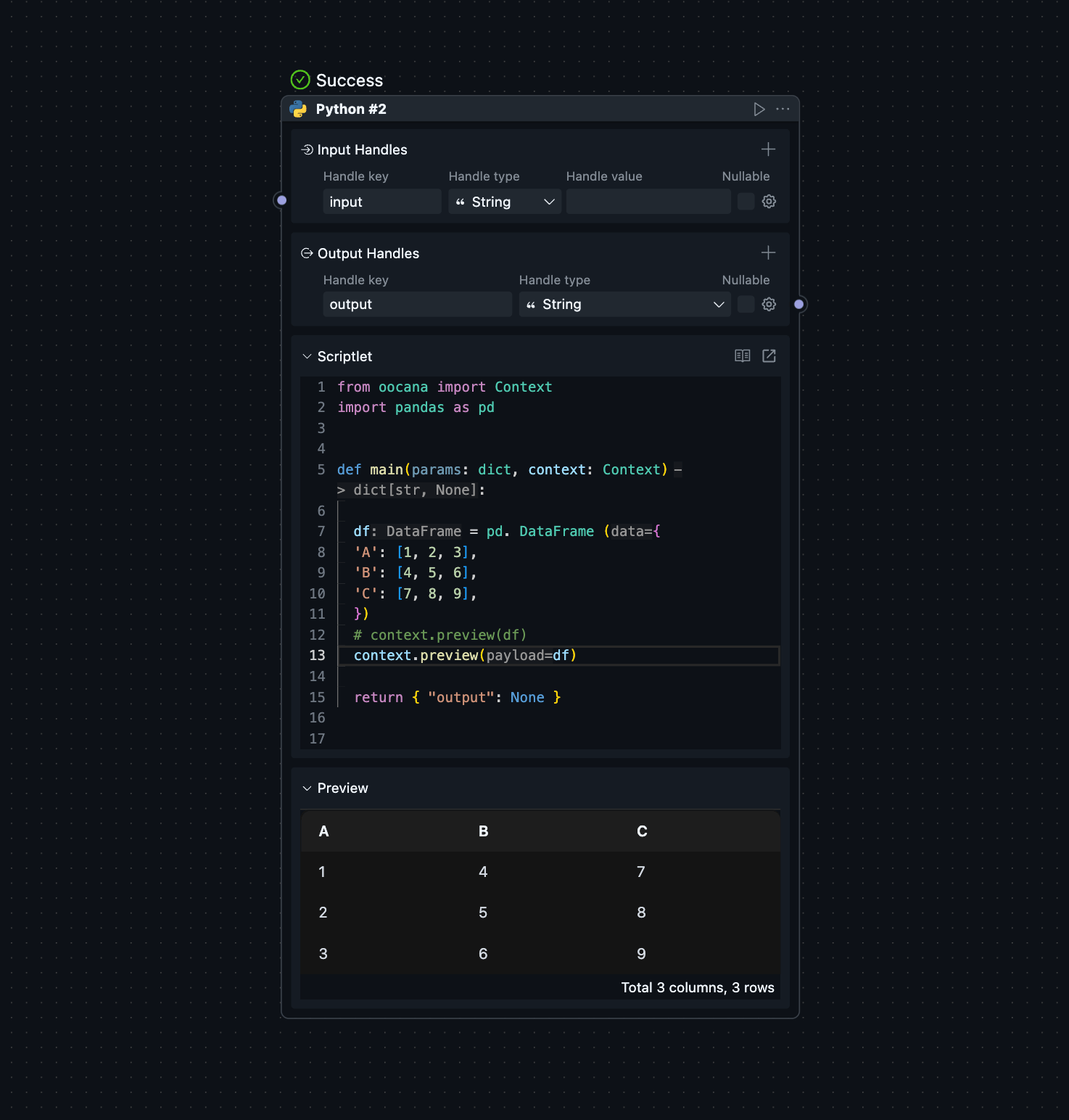

import pandas as pd
df = pd.DataFrame({
'A': [1, 2, 3],
'B': [4, 5, 6],
'C': [7, 8, 9]
})
context.preview(df)

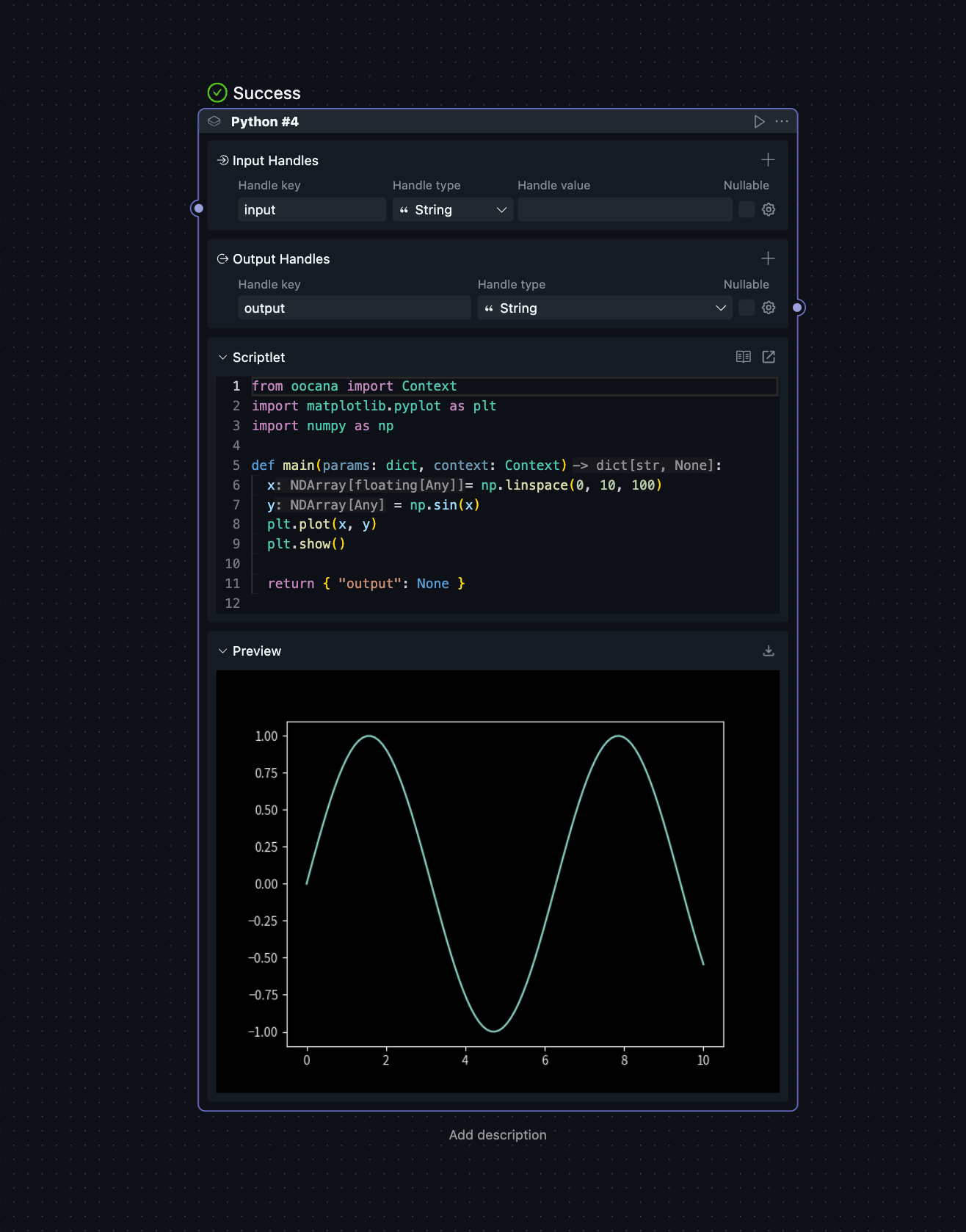

import matplotlib.pyplot as plt
import numpy as np
x = np.linspace(0, 10, 100)
y = np.sin(x)
plt.plot(x, y)
plt.show()
import plotly.graph_objects as go
fig = go.Figure(data=[go.Bar(y=[2, 3, 1])])
fig.show()
Context Types
The OOCANA SDK exposes the API types below to help developers understand and use these interfaces accurately.
class OOMOL_LLM_ENV(TypedDict):
base_url: str
base_url_v1: str
api_key: str
models: list[str]
class HostInfo(TypedDict):
gpu_vendor: str
gpu_renderer: str
class Context:
def __init__(self, inputs: dict[str, Any], blockInfo: BlockInfo, mainframe: Mainframe, store, outputs, session_dir: str, tmp_dir: str, package_name: str, pkg_dir: str) -> None: ...
@property
def logger(self) -> logging.Logger: ...
@property
def session_dir(self) -> str: ...
@property
def tmp_dir(self) -> str: ...
@property
def tmp_pkg_dir(self) -> str: ...
@property
def pkg_dir(self) -> str: ...
@property
def keepAlive(self): ...
@property
def inputs(self): ...
@property
def session_id(self): ...
@property
def job_id(self): ...
@property
def job_info(self) -> JobDict: ...
@property
def block_info(self) -> BlockDict: ...
@property
def node_id(self) -> str: ...
@property
def oomol_llm_env(self) -> OOMOL_LLM_ENV: ...
@property
def host_info(self) -> HostInfo: ...
@property
def host_endpoint(self) -> str | None: ...
@property
def fusion_api_url(self) -> str: ...
async def oomol_token(self) -> str: ...
def output(self, key: str, value: Any): ...
"""
Output data to downstream blocks
key: str, the output key. It must be declared in the block output definition (`handle` field)
value: Any, the output value
"""
def outputs(self, outputs: dict[str, Any]): ...
"""
Output multiple values to downstream blocks
outputs: Dict[str, Any], output key/value pairs. Keys must be declared in the block output definition (`handle` field)
"""
def finish(self, *, result: dict[str, Any] | None = None, error: str | None = None): ...
"""
Finish the current block and send the result to oocana.
If `error` is not None, the block finishes in an error state.
If `result` is not None, the block finishes with that result.
If both `error` and `result` are None, the block finishes normally with no result.
"""
def send_message(self, payload) -> None: ...
def preview(self, payload: PreviewPayload): ...
def report_progress(self, progress: float | int): ...
"""Report progress
This API reports the block execution progress. It only affects the UI progress bar and does not change the actual execution progress.
This API is throttled with a minimum interval of 0.3 seconds.
The first call reports immediately. After that, progress is reported at the end of each throttle window.
| 0.25 s | 0.2 s |
first call second call third call 4 5 6 7's calls
| | | | | | |
| -------- 0.3 s -------- | -------- 0.3 s -------- |
report report report
:param float | int progress: the block progress value. The value should be in [0, 100].
"""
def report_log(self, line: str, stdio: str = 'stdout'): ...
def log_json(self, payload) -> None: ...
def send_warning(self, warning: str): ...
def send_error(self, error: str): ...
def error(self, error: str): ...
